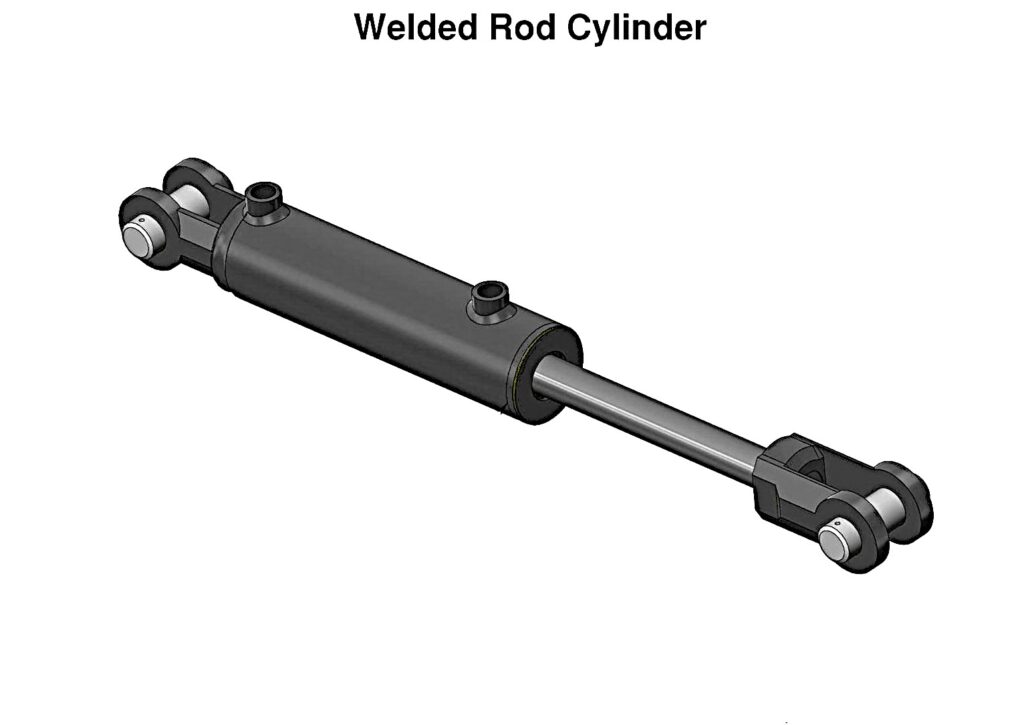

Welded Hydraulic Cylinder
For the welded rod hydraulic cylinder, the barrel is typically welded directly to the end caps. The head cap may be secured using various methods, such as threading or bolting. This design is commonly used in mobile equipment due to its compact construction, internal bearing lengths, and duty cycle advantages compared to tie rod cylinders. However, the welded design can make field inspections and repairs more challenging, as it often requires specialized tools and equipment.

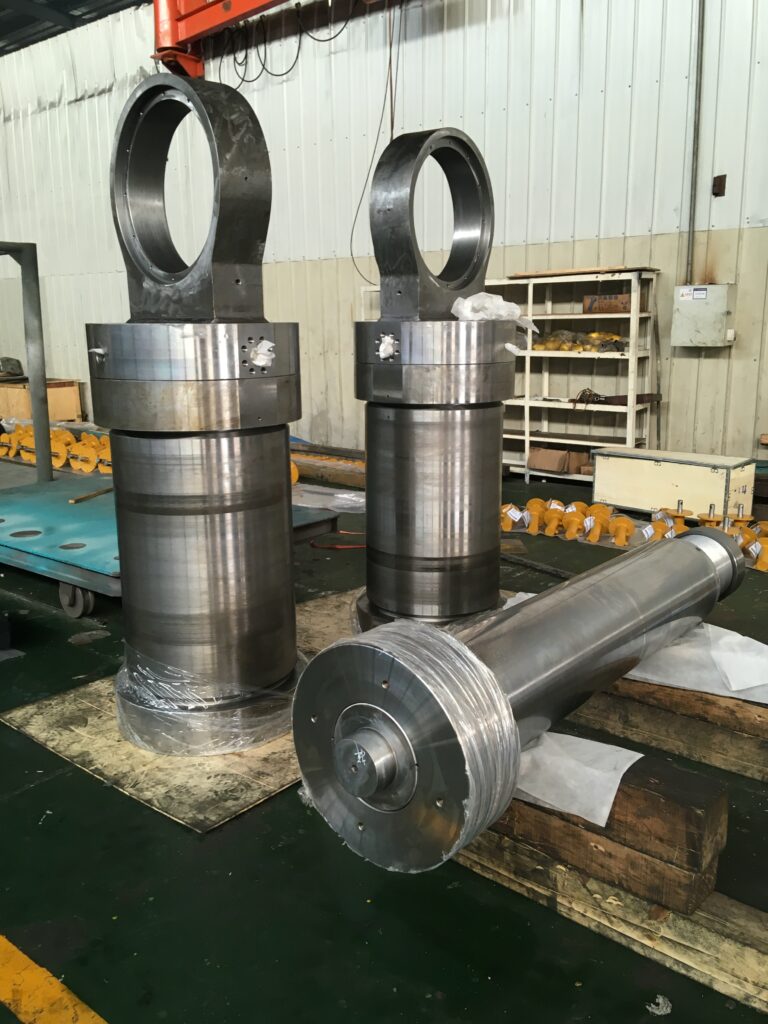

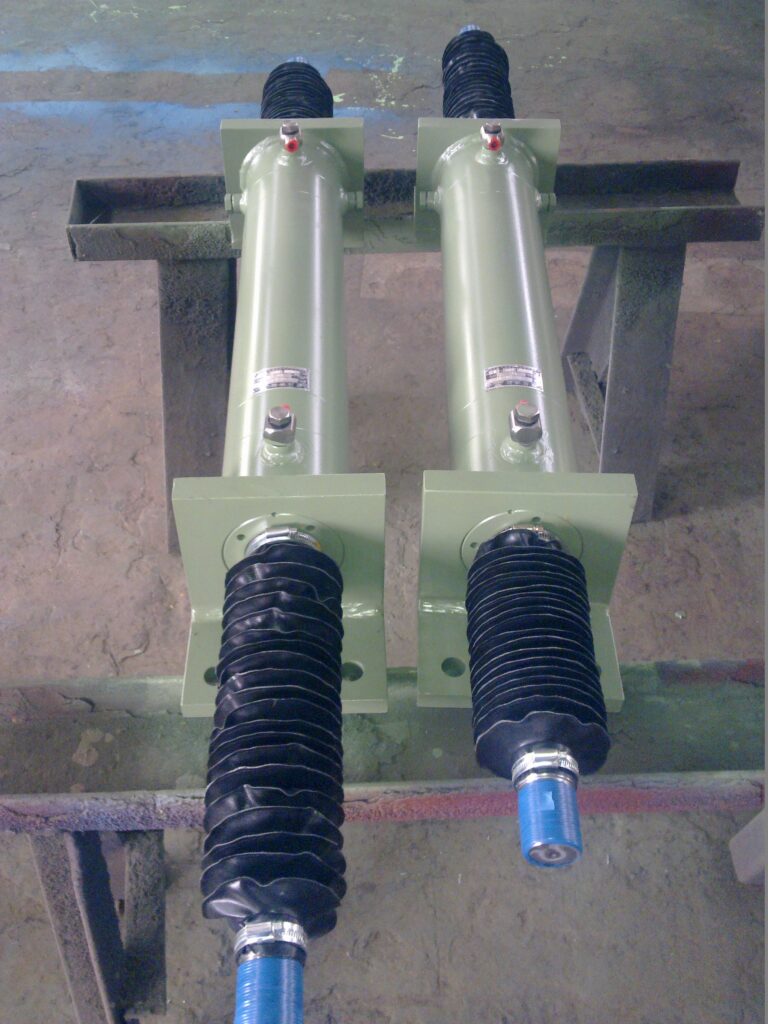

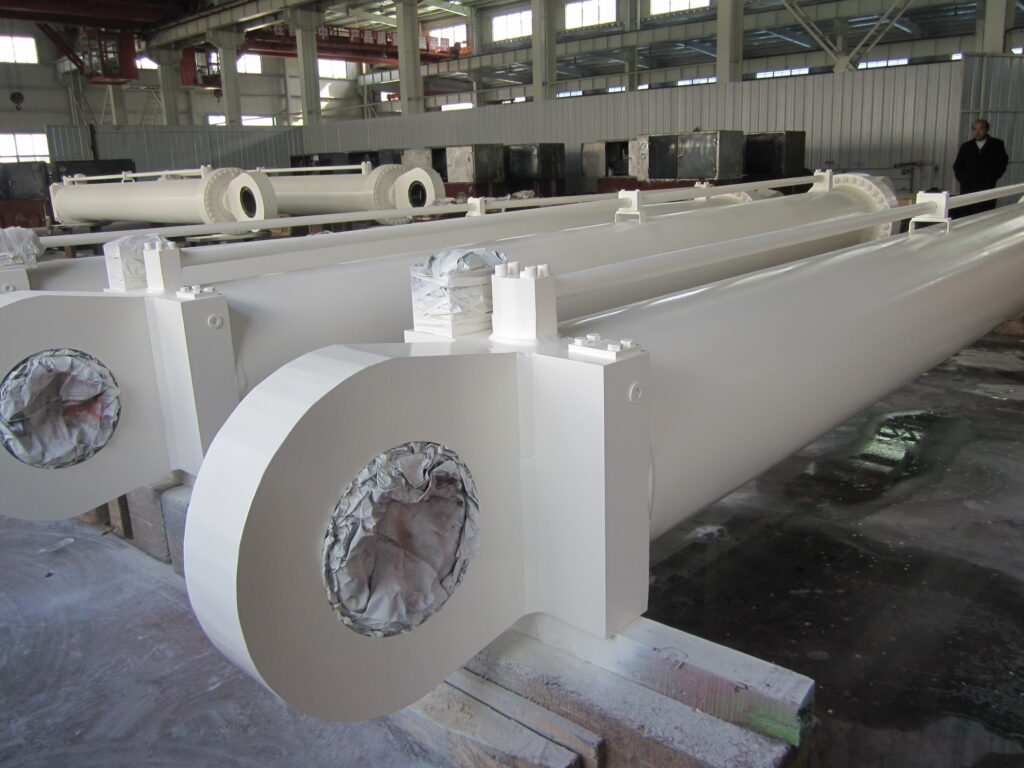

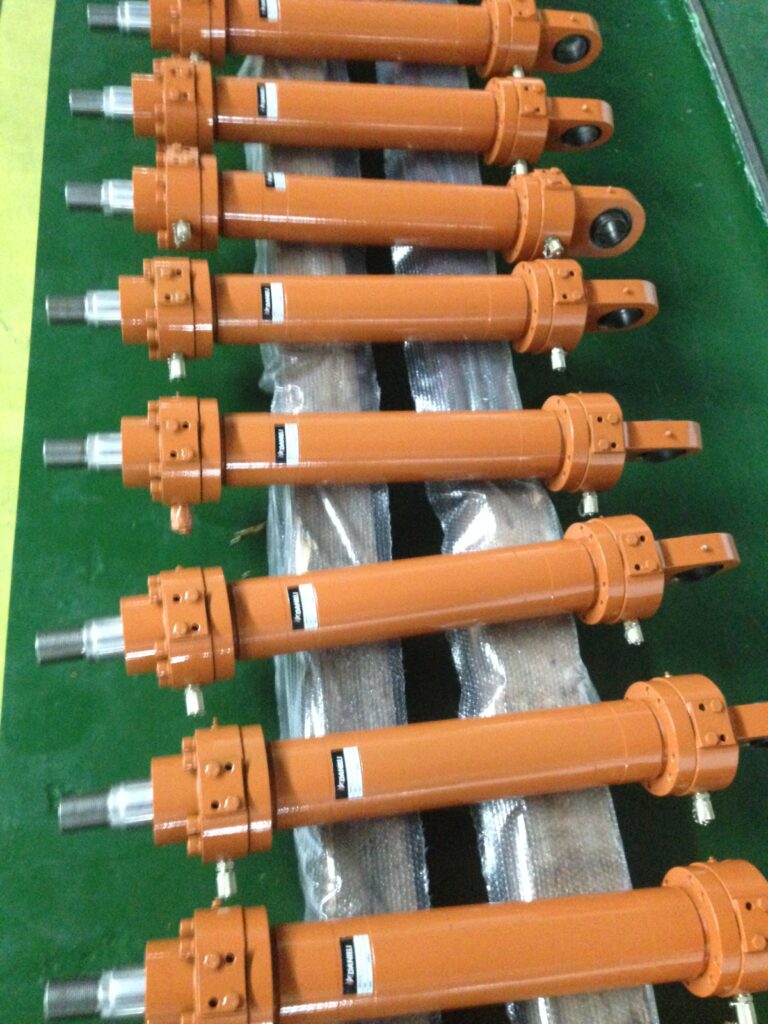

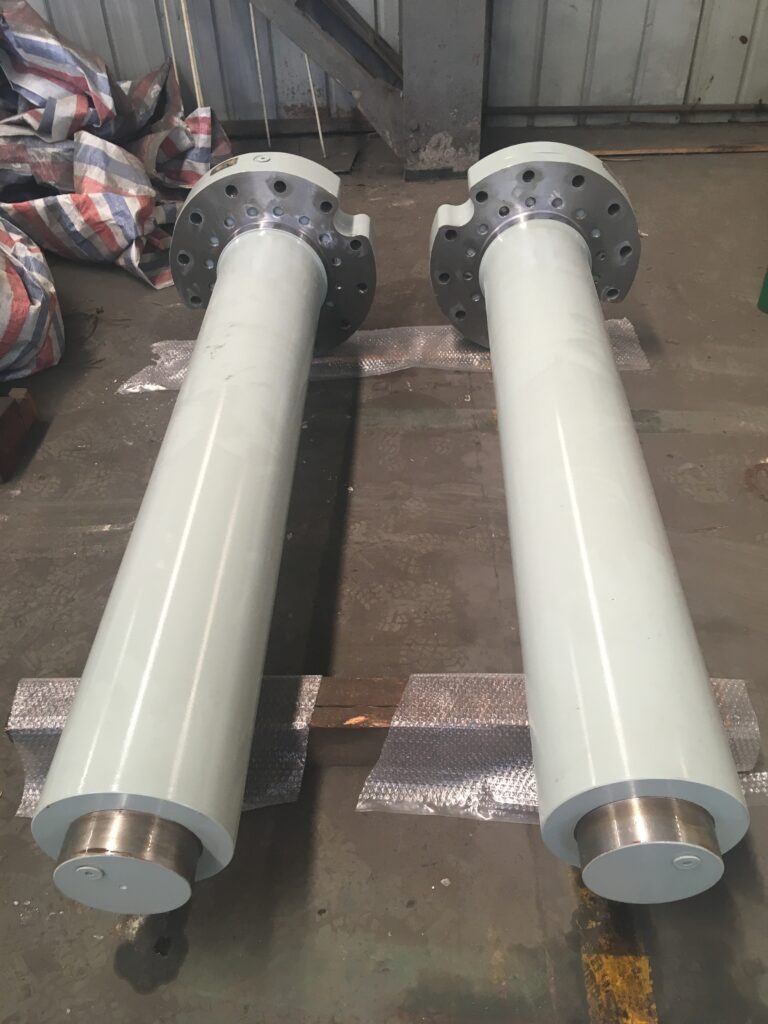

JW HYDRAULIC specialize in supplying of custom-built, welded hydraulic cylinders for a variety of industries and can craft custom hydraulic cylinders for any application imaginable. If your hydraulic cylinder requires small quantities (one-time or repetitively) or short lead times, we can accommodate your needs. For large quantities, our precision and repeatability is also the good choice.
Because we create and manufacture our own custom hydraulic cylinders, we have almost limitless scope when it comes to innovation and design flexibility. Whatever kind of custom hydraulic cylinder you need – from a single acting rod cylinder to telescopic hydraulic cylinder – for any application, our engineers will be pleasure to make a cylinder specifically for you.
