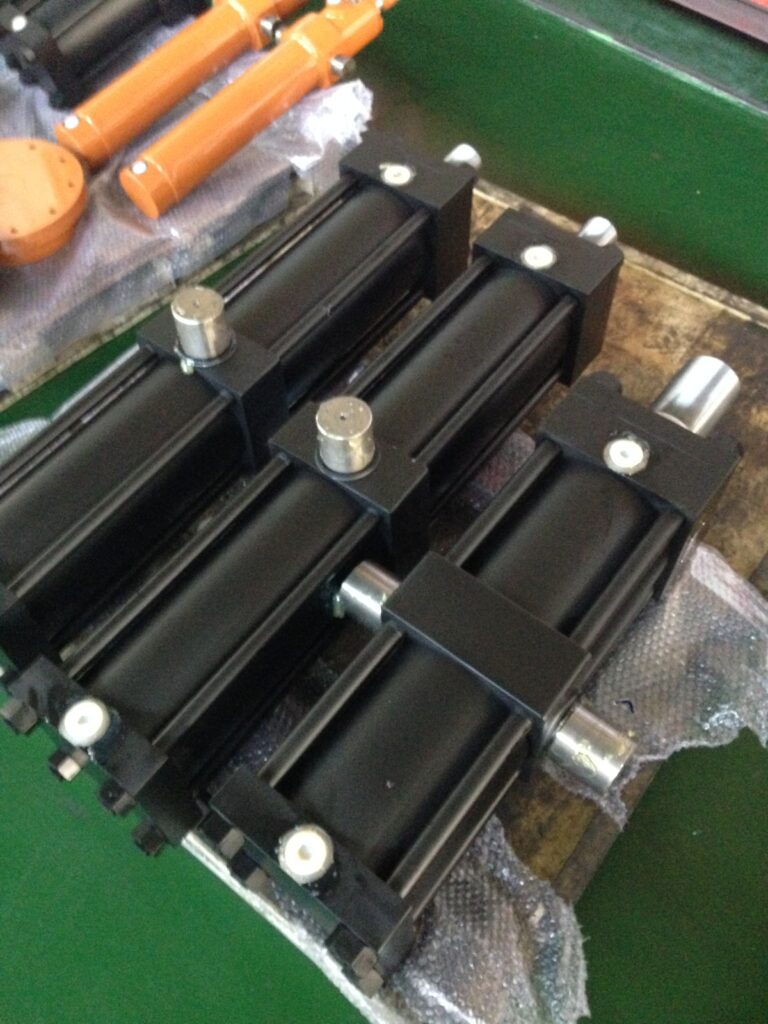

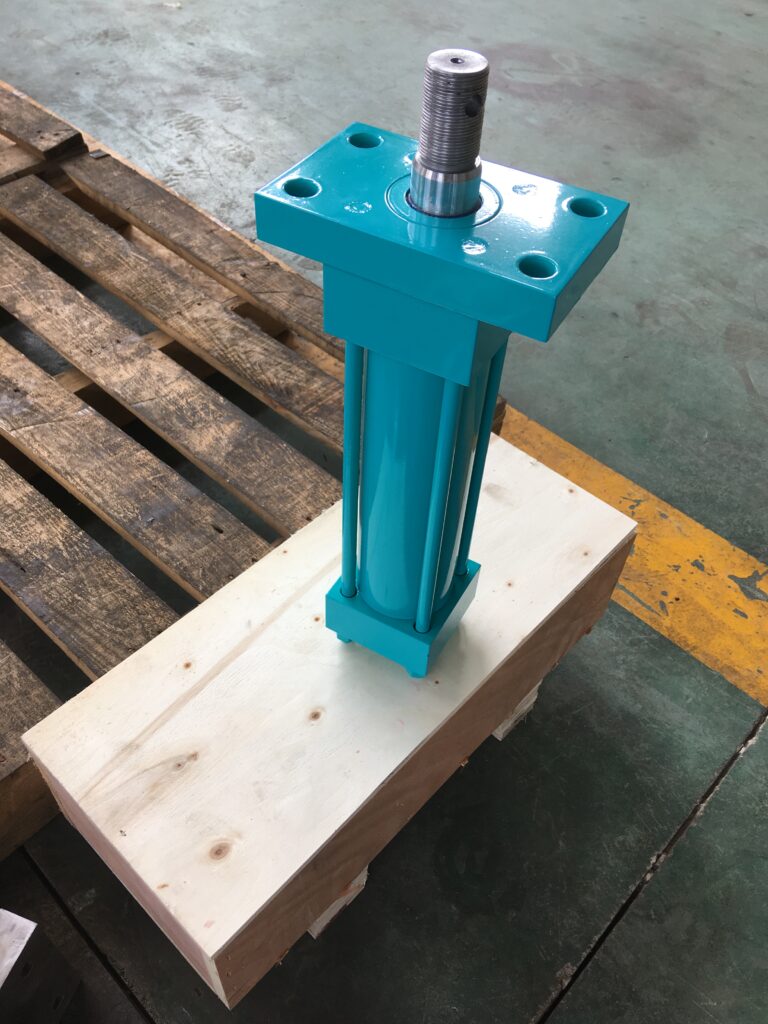

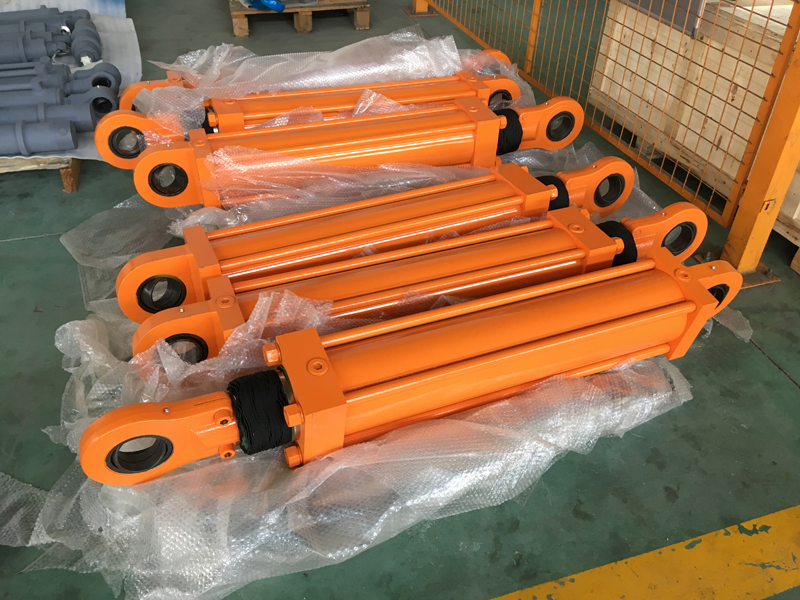

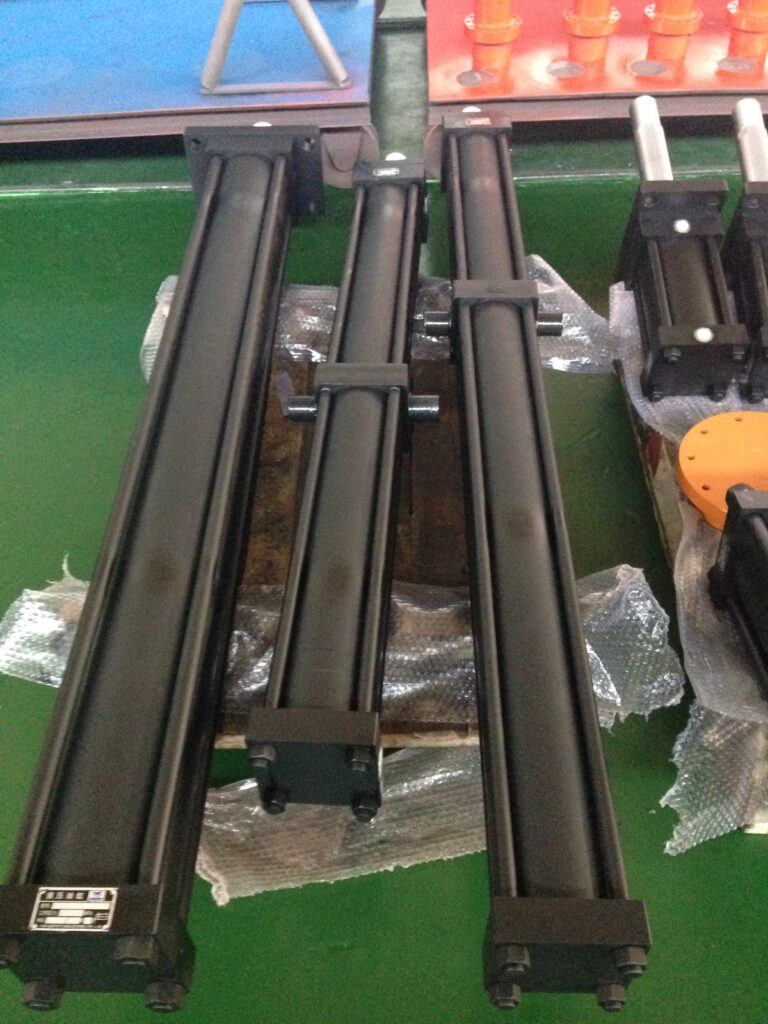

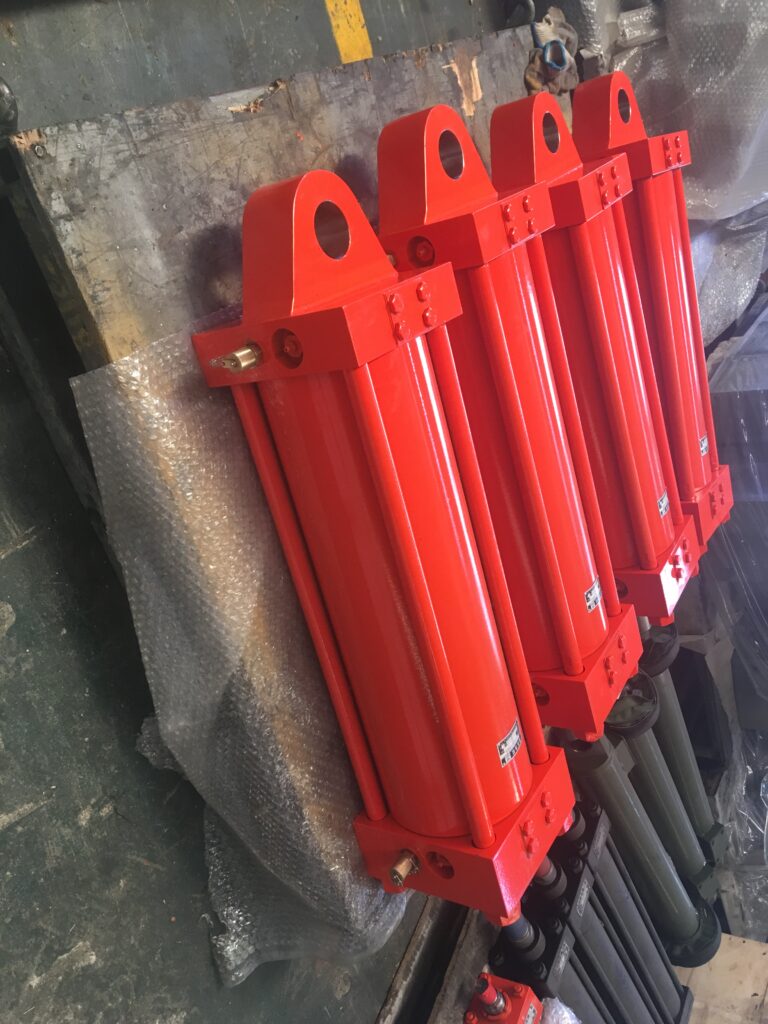

Tie Rod Type Hydraulic Cylinder

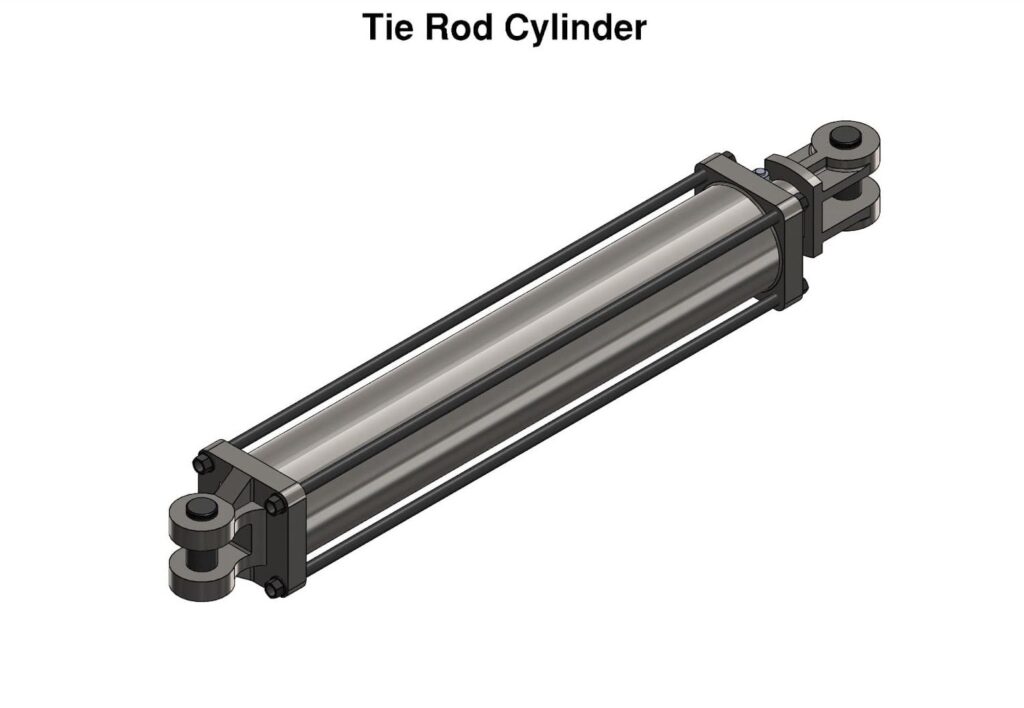

The tie rod hydraulic cylinder uses threaded steel rods, known as tie rods, to secure the end caps of the cylinder barrel. Depending on the bore diameter and operating pressure, the number of tie rods can range up to 20″. One significant advantage of tie rod cylinders is their ease of disassembly for inspection and repair. Tie rod cylinders are widely used in industrial manufacturing applications. Smaller bore cylinders typically have four tie rods, while larger bore cylinders may have up to 20″ to withstand the forces generated during operation.
JW HYDRAULIC produces the tie rod cylinders are highly durable hydraulic devices designed with a robust construction that incorporates tie rods to secure the cylinder ends to the barrel. The design not only enhances the strength and stability of the cylinder but also allows it to withstand high hydraulic pressures, making it a preferred choice for a wide array of industrial applications. Their reliability and durability ensure consistent performance even in the most demanding environments.
